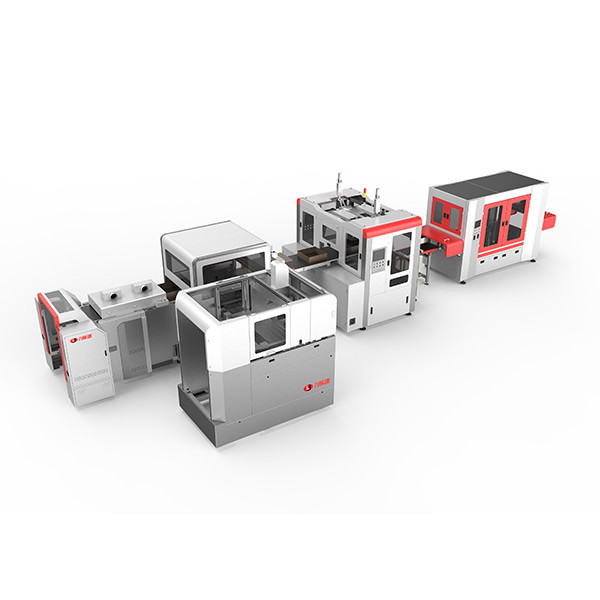

2020 Hot Selling High Speed Intelligent Jewelry Rigid Box Making Line
2020 Hot Selling High Speed Intelligent Jewelry Rigid Box Making Line is widely suitable for the production of all kinds of rigid boxes,
including cosmetic boxes, jewelry boxes,etc. It's double-head forming, and the production speed is fast, greatly increase the production output, which meets the needs of customers.
| | W:95 - 600mm |
| L: 120-880mm |
| Paper thickness | 80-300g/m2 |
| Max.paper stacking height | 800mm |
| Cardboard thickness | 1-3mm |
| | L:45-350mm |
| W:45-250mm |
| H:15-120mm |
| Ear overlapping size | 15-120mm |
| Folding size | 7-100mm |
| Production speed | 35-45pcs/min |
| Setting time | 10-15mins |
| Precision | ±0.1mm |
| Power Supply | 380V/50Hz |
| Max power | 37KW |
| Max power(with bubble pressing machine) | 43KW |
| Air pressure | 0.5-0.7mpa/320NL/min |
| Glue tank volume | 30kg |
| Machine weight | 7500kg |
| Machine weight (with bubble pressing machine) | 9100kg |
| Machine size | L8000*W4000*H3300mm |
| Machine size (with bubble pressing machine) | L11600*W4000*H3300mm |
Product Features
1,High speed: 40-45pcs/min
2,Fast for job changeover
3,Do not need to change the blade & pressing board
4,With memory function
5,Easy & convenient to operate
6,With IOT function
7,Visual robot arm positioning accuracy: ±0.1mm
8,Automatic & Informatization & Intelligentization
ressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
Feeder
1. Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
Positioning
1 . SCARA (Selective Compliance Nachi Robot Arm) for spotting the grey board box
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
Forming Part & Bubble Pressing
1. Automatic Setting By servos.
2. Double wrapper increase production
3. Virtual cam servo driving system
